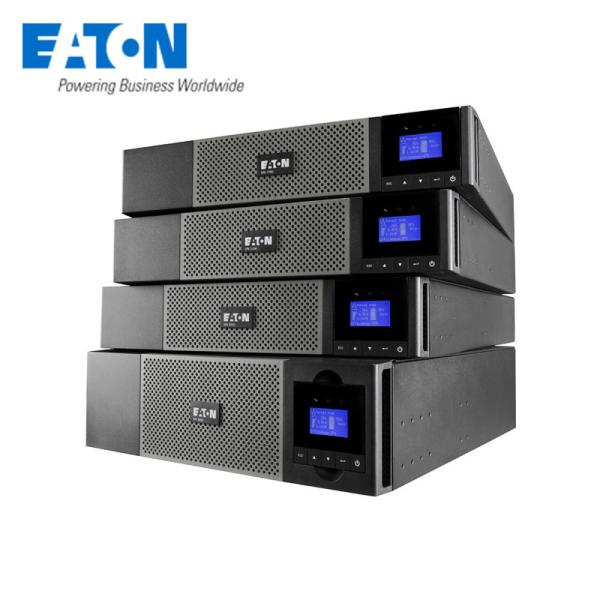

Eaton 5PX 3000VA 3U 5PX3000IRT3UAUG2
The Eaton 5P and 5PX UPS
Superior manageability and energy metering capabilities for better IT decision-making
Introducing the Eaton 5P and 5PX UPS. Energy efficient, virtualisation-ready with an advanced graphical LCD
In today’s complex IT environments, it’s vital you have access to key UPS status information, and can optimise energy efficiency and performance to reduce your costs. The Eaton 5P and 5PX set new standards in server, storage and networking power protection, offering a unique combination of features that make the most of today’s technology and help you to stay ahead.
Eaton 5P and 5PX UPS key benefits.
• The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen (inseven languages). Enhanced configuration capabilities arealso available with easy-to-use navigation keys.
• Meters energy consumption and provides kWh values through the LCD and our power management software
• Up to 98% energy efficiency with the 5P and up to 99% with the 5PX, significantly reducing cooling and utility costs
The 5P and 5PX give optimum real-time visibility into power consumption to support better decision-making, improve system uptime and enhance overall business performance.
Features that set the Eaton 5P and 5PX apart.
• Pure sinewave output: When operating in battery mode the 5P& 5PX provides a high quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
• Unmatched energy density with up to 1.1KW in 1U and 2.7kW in 2U.
• Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices
• Serial, USB and relay connectivity, plus an extra slot for an optional communication card
• Intelligent Power® Software Suite compatible with
all major OS including virtualisation software such as VMware and Hyper-V is included with each UPS
• Eaton ABM® battery management technology for longer battery life
• Batteries can be hot-swapped without ever having to shut down connected equipment. With an optional, hot-swap maintenance bypass module, you can even replace the entire UPS.
• 3-year warranty on electronics, 2 years on batteries.
5PX unique features
• For the first time in the industry the 5PX can meter energy consumption right down to the managed outlet groups.
• The 5PX is available in a rack/tower convertible version – pedestal and rail kits are included with all models at no extra charge.
• With a power factor of 0.9, the 5PX delivers more real output power. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.
• There is also the possibility to add more runtime with up to four external hot-swappable battery modules, able to run systems for hours if necessary.
Eaton innovating for more than 50 years.
Virtualisation-ready for seamless integration.
As a VMware Technology Alliance Partner, Eaton is at the forefront of maximising compatibility of its protection software for the virtual environment. The virtualisation-ready 5P and 5PX are examples of this partnership in action.
In line with our commitment to the open source community, we are constantly working with partners such as Red Hat to generate greater compatibility between IT devices and our power devices.
Our Intelligent Power® Manager integrates seamlessly with Citrix’s XenCenter Server, enabling you to administer backup power and power distribution assets using one, common virtual management console.
