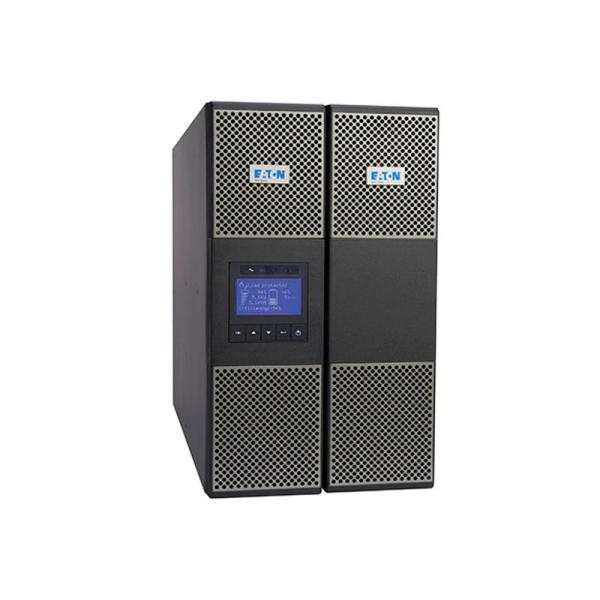

Eaton 9PX 5000i RT3U Rack/Tower UPS 9PX5KI
Highly efficient (93%) double conversion class UPS of modern design
Pure sine wave
Online topology
New cells installed by us
12 Month RTB warranty
It is ready for immediate use on delivery.
The UPS have a fairly comprehensive LCD panel for control, diagnosis and information on condition. The Panel can be rotated through 90 degrees if using as a tower unit. Can be used in a rack or tower orientation. We have rails available - inquire at the time of order.
We ship with one input lead hard wired (IEC309-32A as per the pics) and two output leads (C13-14).
We do not include the networking card, but can supply as an optional extra. Please enquire for current pricing or search for NetworkMS in our listings.
This card enables monitoring and integration to a large number of hosts / VM hosts, VMWare, EMC, Netapp, Citrix, and RedHat and Microsoft to name a few. The configuration of this is down to you, but the functionality is there.
The units are fully tested by UPS experts, and are fully working. They are second user and will have cosmetic signs of previous use. We professionally refurbish including paint touch up or case re-spray as needed. The grading is A-Grade which we class as as good as you can get without having new. We have been supplying UPS since 2002 and are the respected leader in the field, with the most used stock in Europe. What sets us apart is that our experience reduces the occurrence of problems, and our professionalism and the availability of resources means we have the power to quickly resolve issues when they do arise.
Under normal circumstances most orders before 3PM are dispatched on the day of order. Large units / quantities may roll over to being dispatched the next day. Email if you need to be sure of when we can send an order. We try to meet all customer deadlines.
All of our consignments are sent fully insured on a 24 hour service with our carriers. We cover all problems that occur in transit. We can ship to the EU (transit time varies) and have experience packing and shipping to overseas destinations. The EU shipping costs are estimated only, please contact us for confirmation before ordering. Large UPS may be palletised or shipped with the UPS in one box, and the cells in another. We have the packing materials to make sure that there are few problems in transit. Our warehouse is based in the UK. VAT is included in the buy it now price, and if you are VAT registered you will be able to reclaim this. VAT Invoices are sent automatically as a PDF file, via email, as part of our automated dispatch process.
Specifications
Max Output power 4500 W / 5000VA
Input operation voltage range 100 V - 276V
Power supply input frequency 40/70
Maximum current 90 A
Input current THD 5%
Crest factor 3:1
AC outlets quantity 5 AC outlet(s)
AC outlet types C13 coupler, C19 coupler, Terminal
Power plug Terminal
USB 2.0 ports quantity 1
RS-232 ports 1
Form factor Rackmount/Tower
Colour of product Black
Display LCD
Noise level 45 dB (variable speed fan)
Operating temperature (T-T) 0 - 40 °C
Safety IEC/EN 62040-1, UL 1778, CSA 22.2
Certification IEC/EN 62040 -2 , FCC A, IEC/EN 62040-3
Weight 48 kg
Width 130 mm
Height 440 mm
Depth 685 mm
Interface USB, RS232
