Place of Origin : China
Brand Name : RIELLO
Model Number : S3T CPT-ACT-XTD 10BAT
MOQ : 1
Price : $3,857
Battery Type : Lead Acid Battery, VRLA AGM/GEL/NiCd/Li-ion/SuperCaps
Phase : Three Phase
Protection : Overvoltage
Weight : 48 kg
Type : On-line
Electric Energy : 1000 Wh
Voltage tolerance : 400 ±20% @ full load
Rated frequency : 50 / 60 Hz
Power factor : 0.99
THDi : ≤3%
Voltage distortion : <1% with resistive linear load / ≤1.5% with non-linear load
Bypass overload : 110% infinite, 125% for 60 min, 150% for 10 min
Dimensions : 1000x850x1900 mm
IP rating : IP20
| Specification | Value |
|---|---|
| Place of Origin | China |
| Brand Name | RIELLO |
| Model Number | S3T CPT-ACT-XTD 10BAT |
| Electric Energy | 1000Wh |
| Battery Type | Lead Acid Battery |
| Phase | Three Phase |
| Protection | Overvoltage |
| Weight | 48 kg |
| Type | On-line |
| Application | Small Data Centre |
| Voltage tolerance [V] | 400 ±20% @ full load |
| Rated frequency [Hz] | 50 / 60 |
| Power factor at full load | 0.99 |
| THDi | ≤3% |
| Voltage distortion | <1% with resistive linear load / ≤1.5% with non-linear load |
| Bypass overload | 110% infinite, 125% for 60 min, 150% for 10 min |
| Battery Type Options | VRLA AGM/GEL/NiCd/Li-ion/SuperCaps |
| Dimensions (WxDxH) [mm] | 1000x850x1900 |
| IP rating | IP20 |
|
|

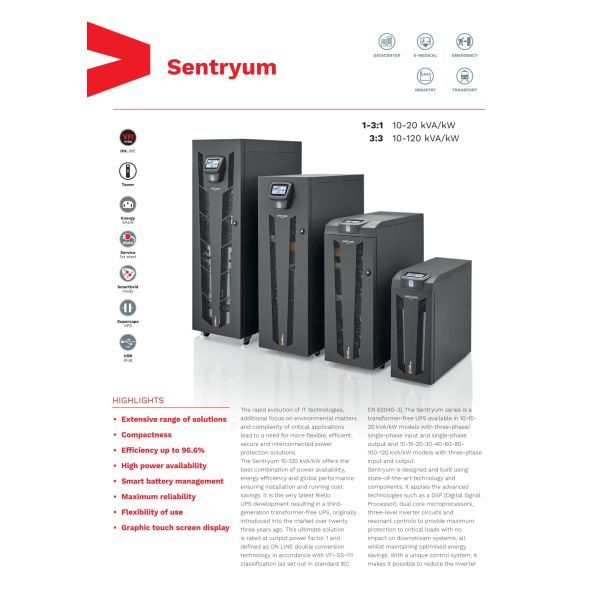

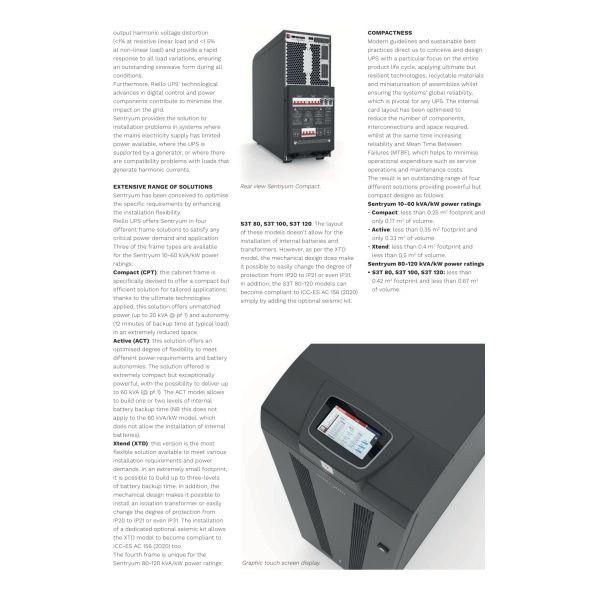

Riello Tower UPS Sentryum Series 10-120KVA 380V 3:3/3:1 Online UPS for Small Data Centre and Medical Industry Images |
